Leonardo Click&Safe 3.5 and hydro, The high-performance radiant ceiling with 3.5 cm pipe spacing
- Surface Ceiling
- Type Single family residence, Multi-family residence, Services
Adductions inserted in the plate
Pre-assembled fittings for maximum durability
Connection between panels with double-sealed fittings (Click&Safe)

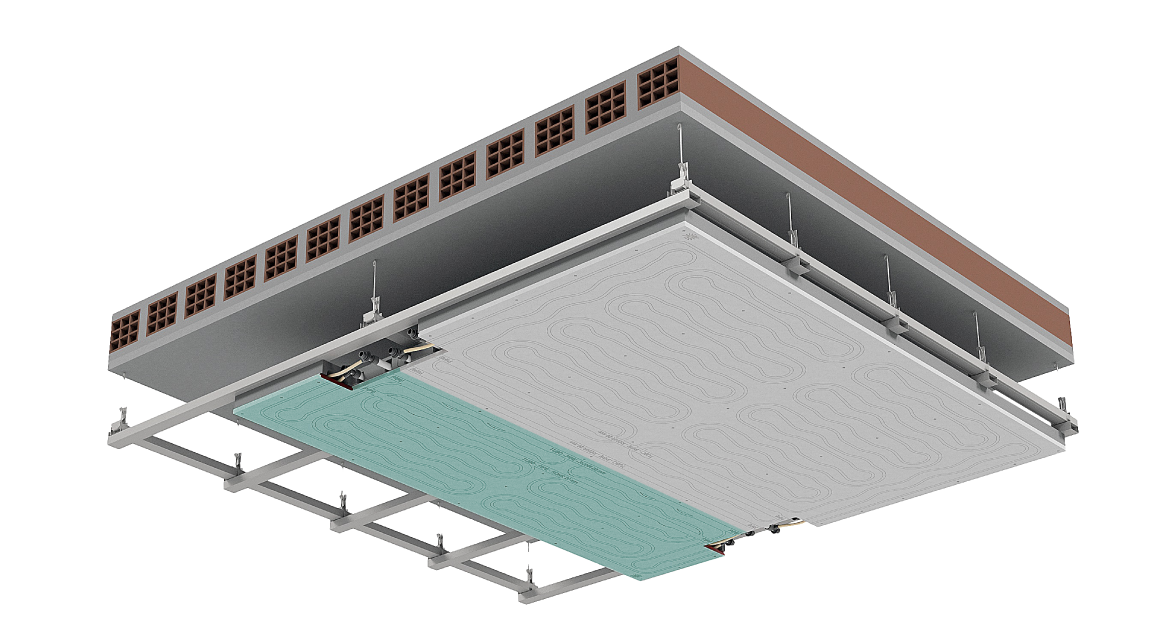

Leonardo Click&Safe 3.5 and Leonardo Click&Safe 3.5 Idro are the perfect solution for both heating and cooling. The Leonardo system is based on modular plasterboard panels with integrated MidiX Plus piping spaced at 3.5 cm intervals, optimizing the heat exchange surface between the pipe and the panel. The panels, available in standard or hydro versions, are coupled with a sintered EPS insulation board with graphite to ensure high energy efficiency and top-level thermal performance.
.jpg) | SMART RADIANTThe smart and easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. The radiant system has never been so smart. |
|---|
TECHNICAL DATA SHEET
Prefinished 15 mm plasterboard panel for ceiling installation coupled with 35 mm of Neopor® type graphite-sintered expanded polystyrene foam or similar (λD=0.030 W/m·K according to EN 13163), complete with 5-layer high-temperature resistant polyethylene PE-RT MidiX Plus type II piping (DIN 16833, ISO 24033, ISO 22391, ISO 21003, EN 1264) with EVOH oxygen barrier in the pipe walls and vapor permeability of less than 0.32 mg/(m²d) at 40°C and 3.6 mg/(m²d) at 80°C (which means it falls within the limits of DIN 4726 and EN 1264-4), class 4 and 5 mechanical strength characteristics at 6 bar (ISO 10508) and an expected service life of 50 years; MidiX Plus 10 x 1.3 mm piping arranged in a serpentine pattern with an optimized path to increase the safety area for fixing and 5.5 cm spacing; to ensure constant product quality, MIDIX PLUS pipe is subject to product and process verification and control by third-party body KIWA N.V., and supplied with KOMO K 86478 and DIN CERTCO 3V399 PE-RT system certification and CE marking through ETA 17-1013; the surface of the panel displays a laser drawing indicating the location of the pipe; piping complete with connection rings; the insulation layer houses a multi-layer PE-RT type II (PE-RT II/AL/PE-RT II) 20 x 2 mm (EN ISO 21003) pipe bar, capped, pre-expanded and complete with rings for hydraulic connection of the panels to the main adduction lines, class 1, 2, 4 and 5 mechanical strength characteristics at 10 bar, it is impermeable to oxygen as per DIN 16836 and meets the requirements of EN ISO 11855 and UNI EN 1264-4, and the hydraulic connections are certified air tight according to EN ISO 21003-5. Smooth finish. Specific gravity in service: ~13 kg/m²

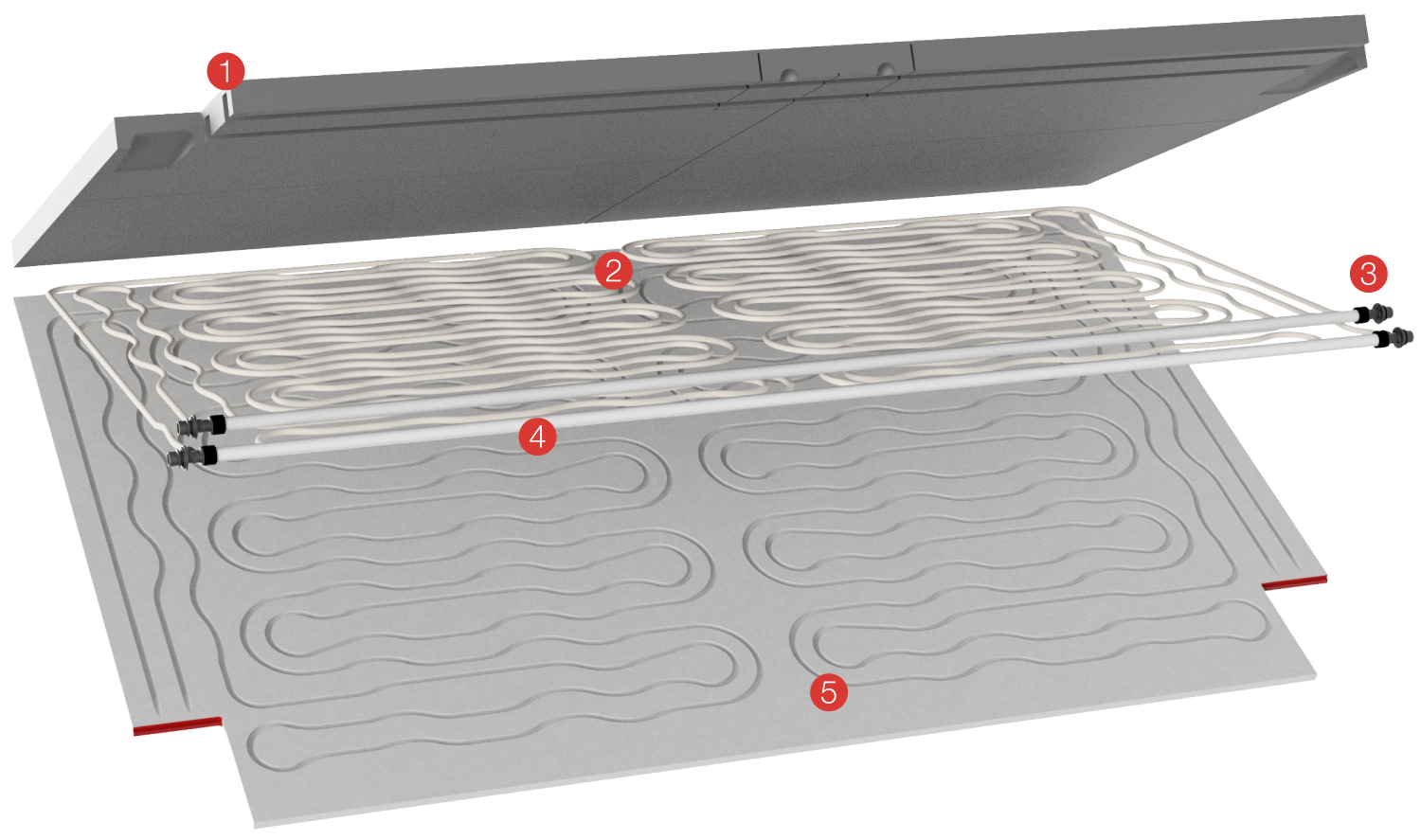

- 1
EPS insulating panel
- 2
Midix Plus 5-layer pipe
- 3
Pre-mounted fittings on the pipe
- 4
Hydraulic backbone
- 5
Plasterboard sheet with laser marking pipe safety area
why choose this system
Low thermal inertia
Thanks to the diameter and thickness of the pipe used (MidiX 10x1.3 mm), the fact the piping is integrated in the plasterboard, which increases the yield by 8% compared to the pipe inserted in the insulation, and the special serpentine geometry, the Leonardo ceiling system with guarantees high yield a very low system thermal inertia.
The adjacent thermographic photographs illustrate a Leonardo system operating in cooling mode at an average water temperature of 18° C. Note how, after just 20 minutes, the system is already operating at full capacity.
DESIGN PLUS

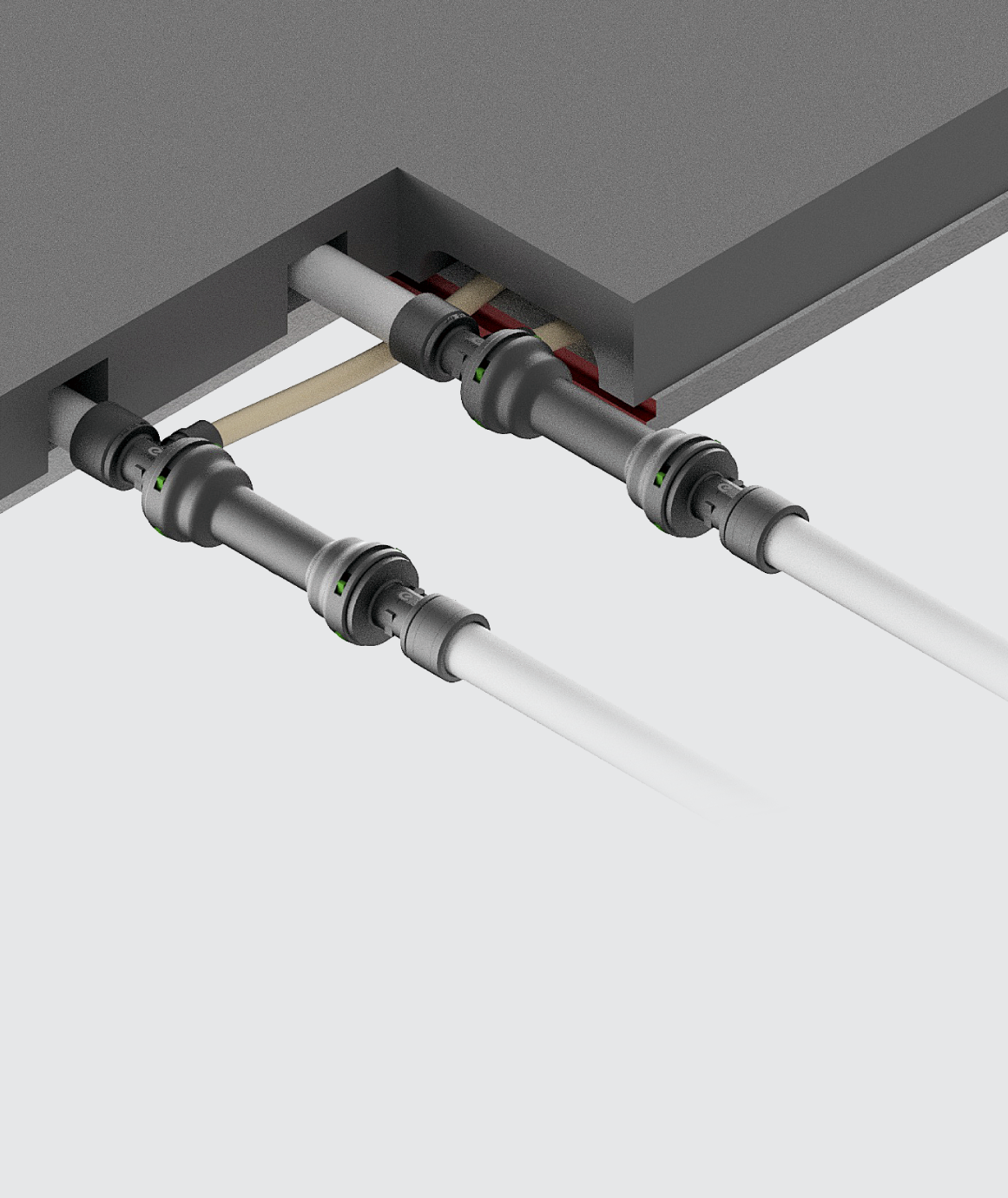

Pre-installed hydraulic backstop
The hydraulic backbone already integrated within the panel, designed to facilitate the series connection of the panels, greatly simplifies the operations of installation on the construction site.

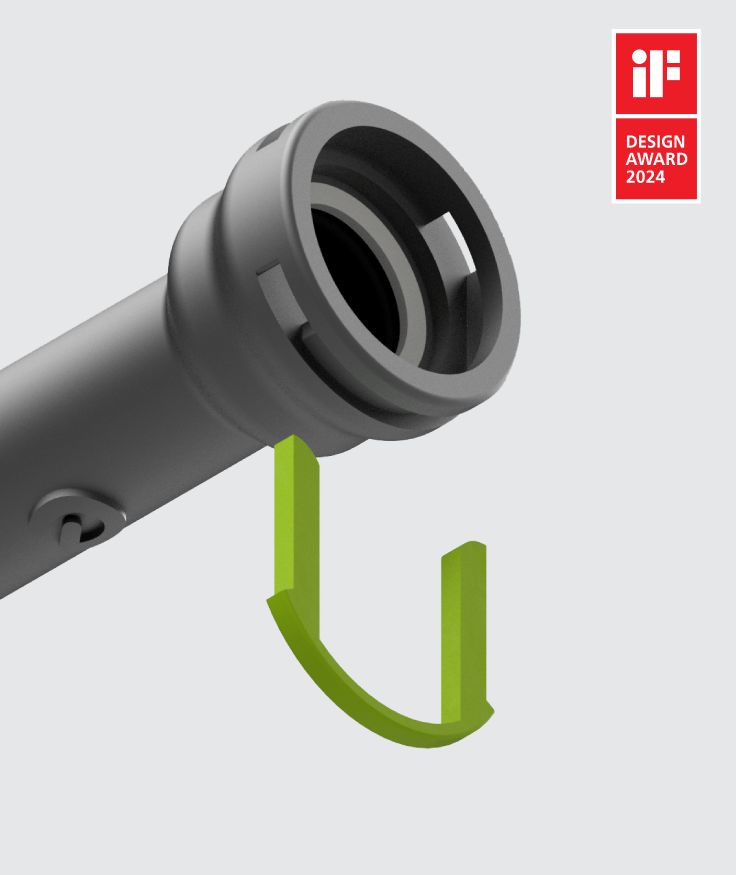

New Click&Safe fitting
Pre-assembled lace-up fittings ensure maximum durability, thanks to double gaskets on connectors between panels. The system connects 10 m² in less than 10 minutes, without tools, with safety clips for precise and reliable assembly.

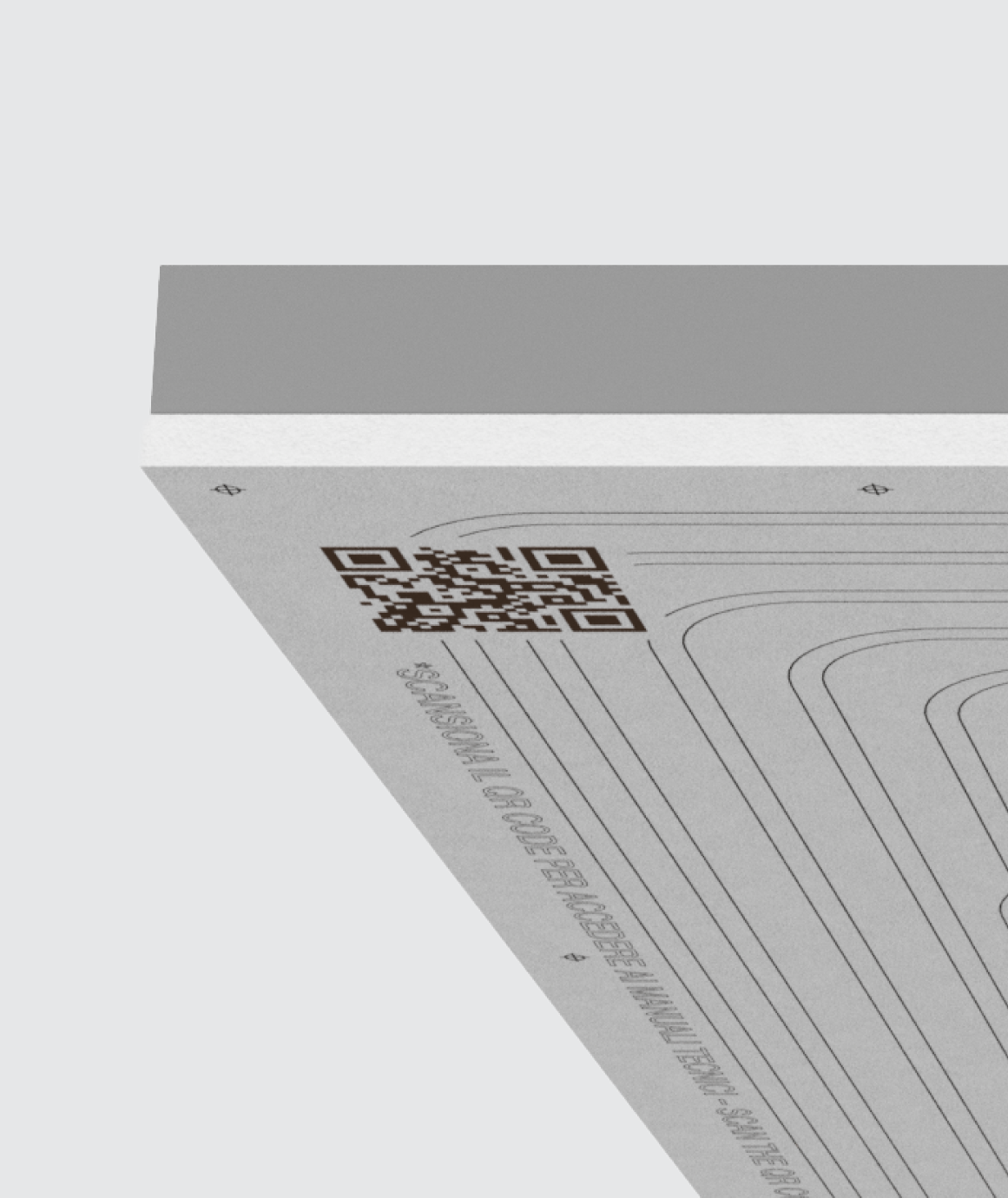

Digital installation instructions
Each Leonardo panel has a QR code that provides access to technical manuals, instructional videos, and other resources directly from your smartphone, making installation and maintenance faster and easier.

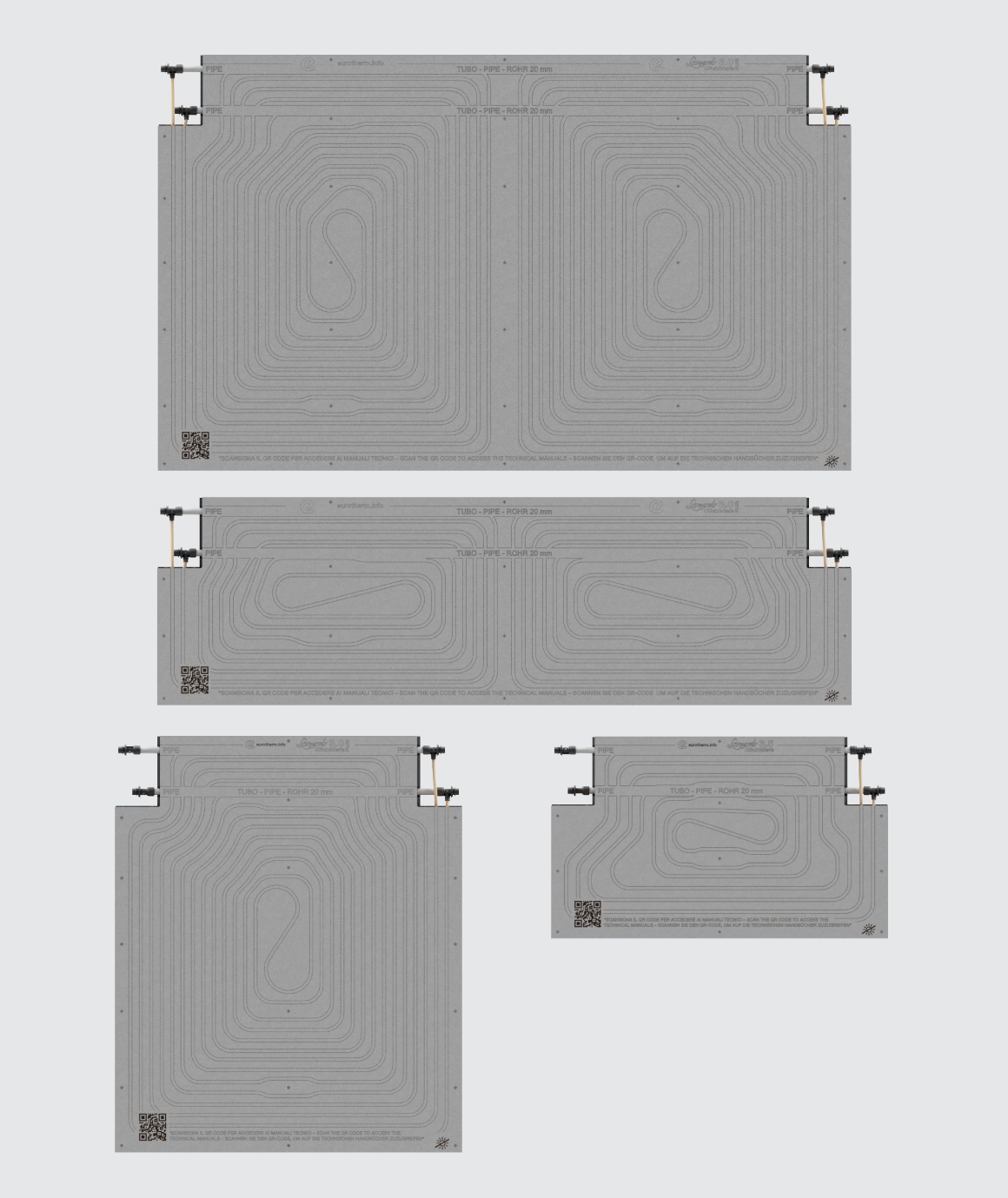

Modularity of the paneling
The new system introduces a completely new and more efficient approach compared to the previous model. One of the main innovations is the availability of modular panels in a range of standard sizes, eliminating the need to cut panels during installation. If necessary, panels measuring 1200x2000 mm and 600x2000 mm can be divided in half.

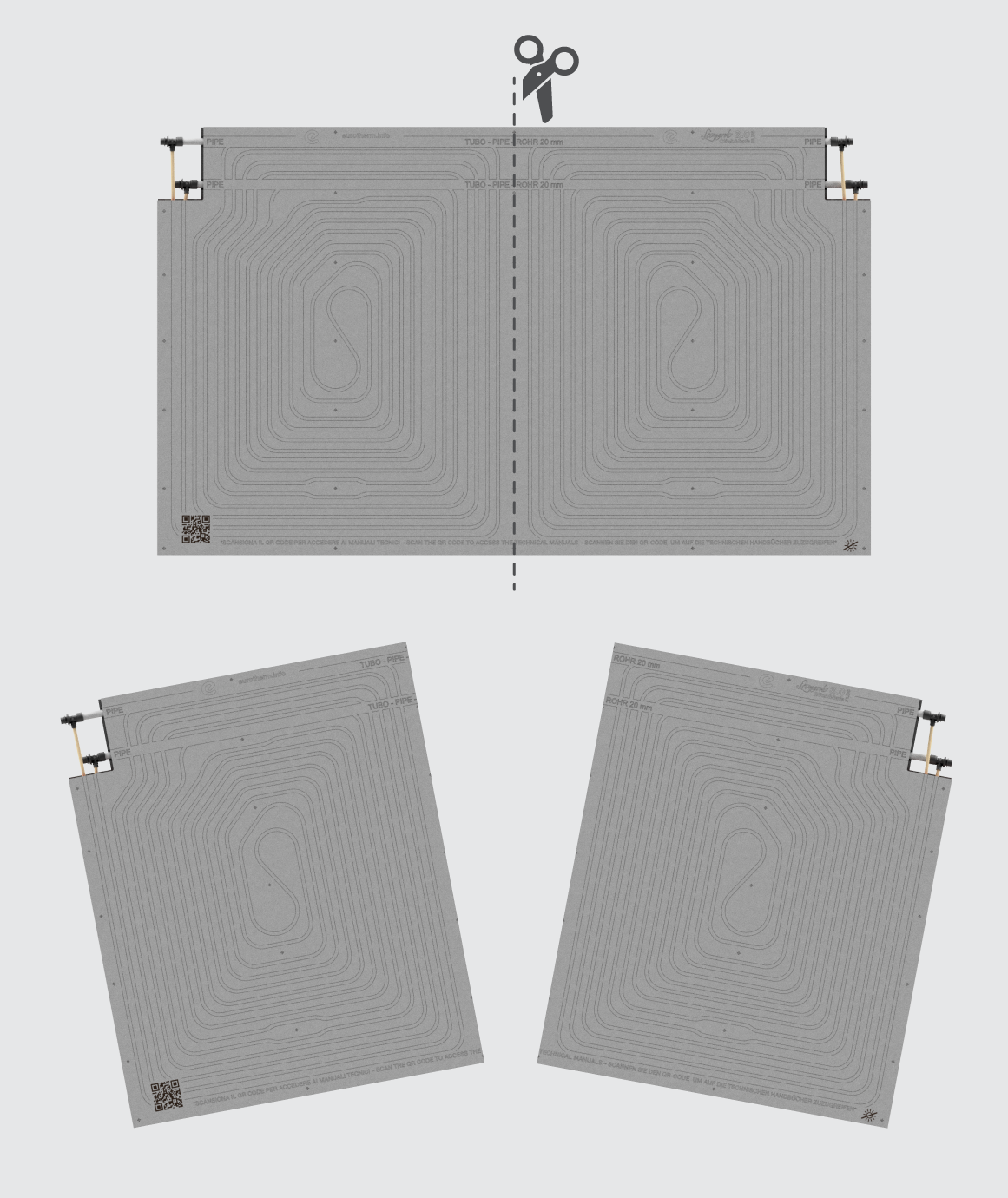

Flexible design
The extreme versatility of the Leonardo system can be seen in both design and installation. The panel has been designed with an integrated pipe with two independent circuits. It is therefore possible to cut the plasterboard panel into two exactly mirror-image parts, each equipped with its own pipework.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
