Leonardo Lux Click&Safe, Easy integration with lighting systems, air vents and other systems
- Surface Ceiling
- Type Single family residence, Multi-family residence, Services
Adductions inserted into the plate

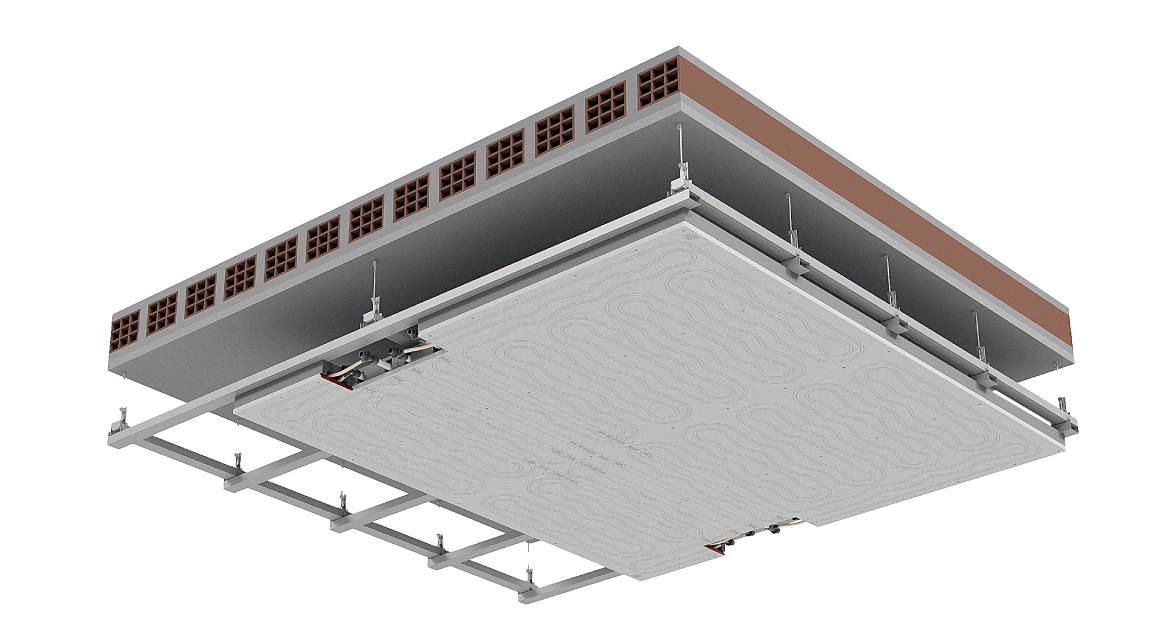

Central compartment for installation of lights, air vents and other fixtures
Raccordi testati a diversi cicli di temperatura e pressione presso Laboratorio Certificato
Disponibile anche nella versione IDRO per locali umidi

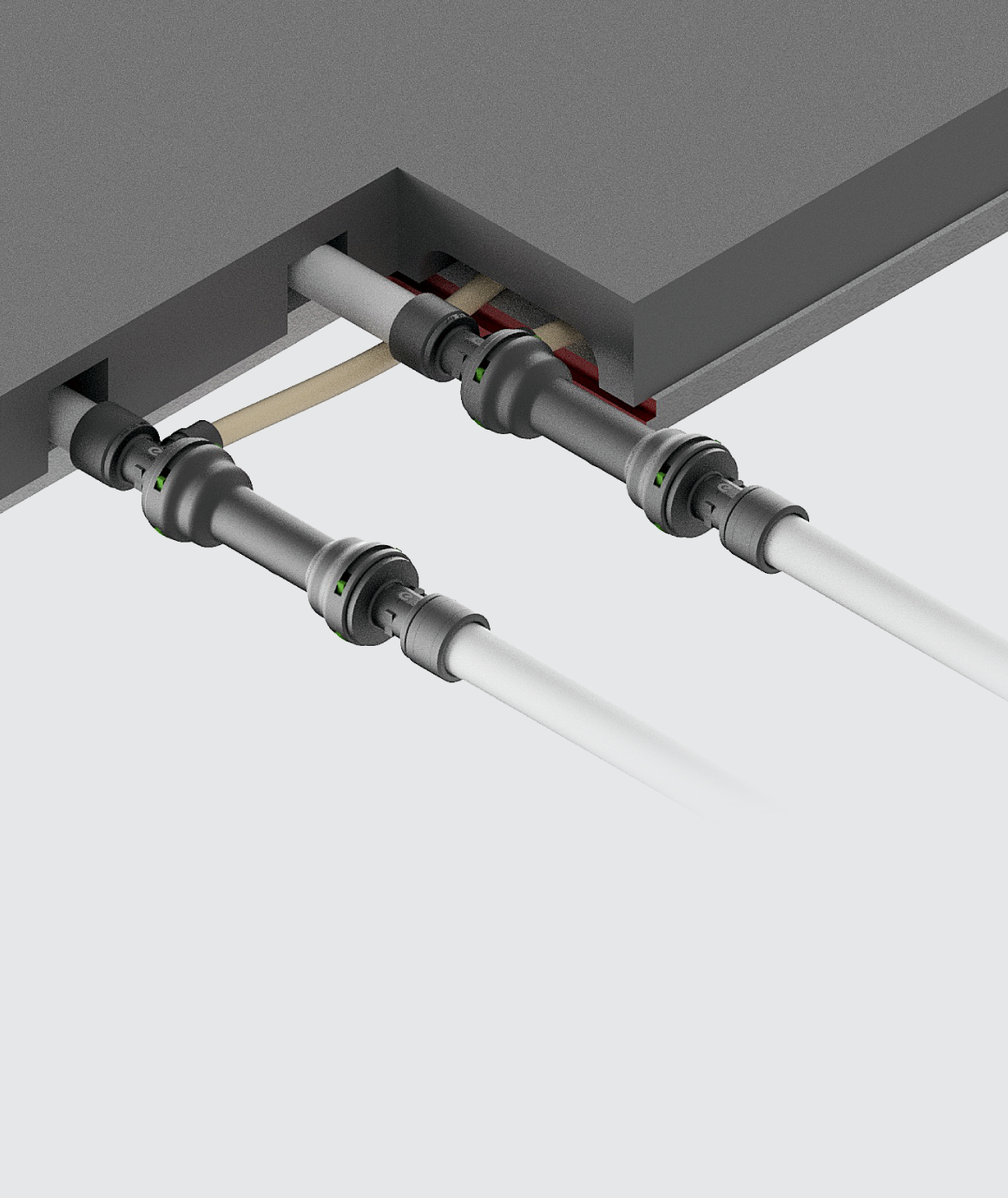

Collegamento tra pannelli con raccordi a doppia guarnizione (Click&Safe)
Leonardo Lux is the innovative radiant ceiling system that meets both heating and cooling requirements. The system is compatible and can be integrated with the Leonardo Click&Safe range of radiant ceilings (excluding Leonardo RF) and, with the same output and flow rate, can replace a Leonardo 5.5 cm panel.
.jpg) | SMART RADIANTThe smart and easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. The radiant system has never been so smart. |
|---|
TECHNICAL DATA SHEET
  | .jpg) TECHNICAL COMPARTMENT |
|---|
Prefinished 15 mm plasterboard panel for ceiling installation coupled with 35 mm of Neopor® type graphite-sintered expanded polystyrene foam or similar (λD=0.030 W/m·K according to EN 13163), complete with 5-layer high-temperature resistant polyethylene PE-RT MidiX Plus type II piping (DIN 16833, ISO 24033, ISO 22391, ISO 21003, EN 1264) with EVOH oxygen barrier in the pipe walls and vapor permeability of less than 0.32 mg/(m²d) at 40°C and 3.6 mg/(m²d) at 80°C (which means it falls within the limits of DIN 4726 and EN 1264-4), class 4 and 5 mechanical strength characteristics at 6 bar (ISO 10508) and an expected service life of 50 years; MidiX Plus 10 x 1.3 mm piping arranged in a serpentine pattern with an optimized path to increase the safety area for fixing and 3.5 cm spacing; to ensure constant product quality, MIDIX PLUS pipe is subject to product and process verification and control by third-party body KIWA N.V., and supplied with KOMO K 86478 and DIN CERTCO 3V399 PE-RT system certification and CE marking through ETA 17-1013; the surface of the panel displays a laser drawing indicating the location of the pipe; piping complete with connection rings; the insulation layer houses a multi-layer PE-RT type II (PE-RT II/AL/PE-RT II) 20 x 2 mm (EN ISO 21003), capped, pre-expanded and complete with rings for hydraulic connection of the panels to the main adduction lines, class 1, 2, 4 and 5 mechanical strength characteristics at 10 bar, it is impermeable to oxygen as per DIN 16836 and meets the requirements of EN ISO 11855 and UNI EN 1264-4, and the hydraulic connections are certified air tight according to EN ISO 21003-5. Smooth finish. Specific gravity in service: ~12.5 kg/m²
- 1

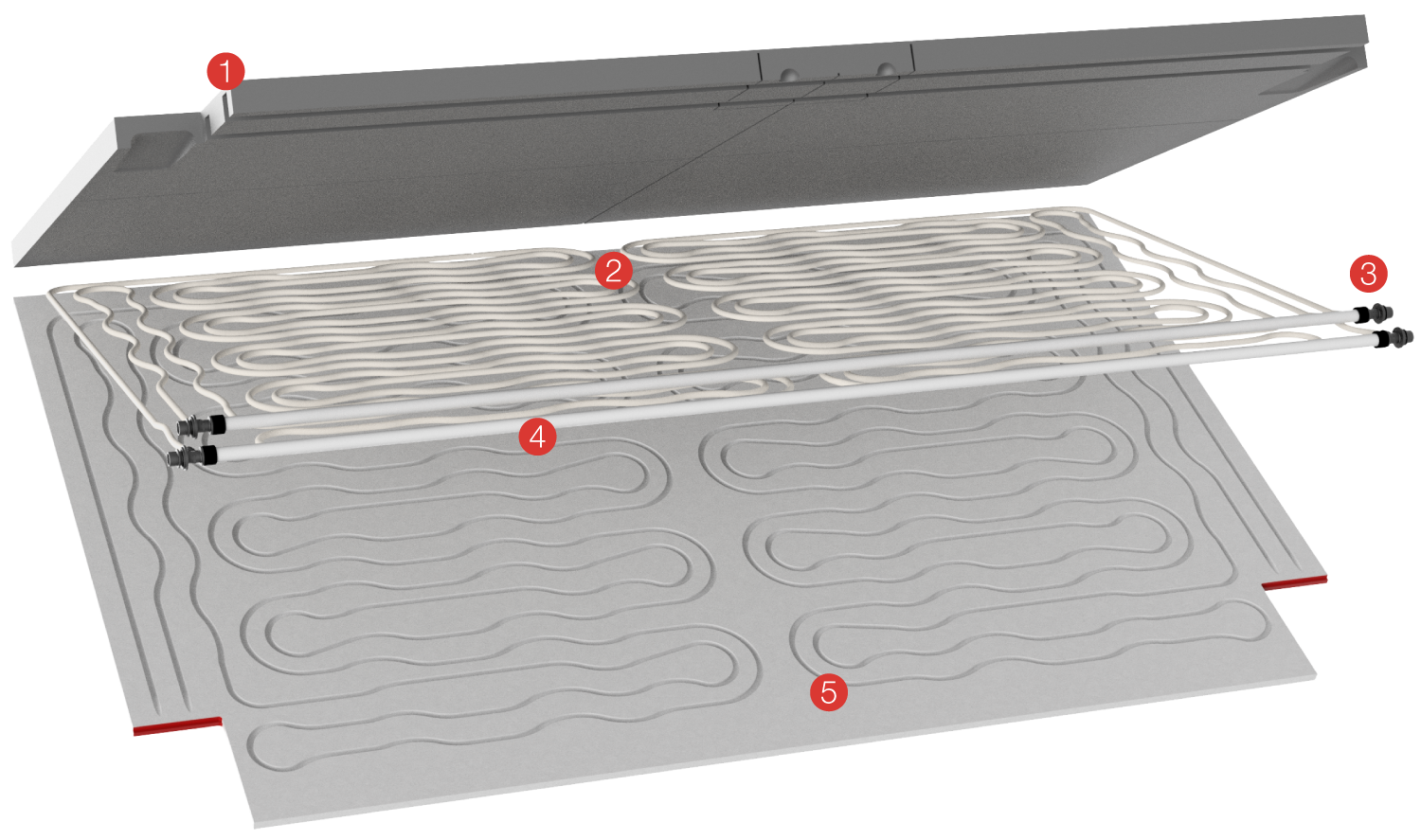

EPS insulating panel
- 2
Midix Plus 5-layer pipe
- 3
Pre-mounted fittings on the pipe
- 4
Hydraulic backbone
- 5
Plasterboard sheet with laser marking pipe safety area
why choose this system
Prepared for plant housing

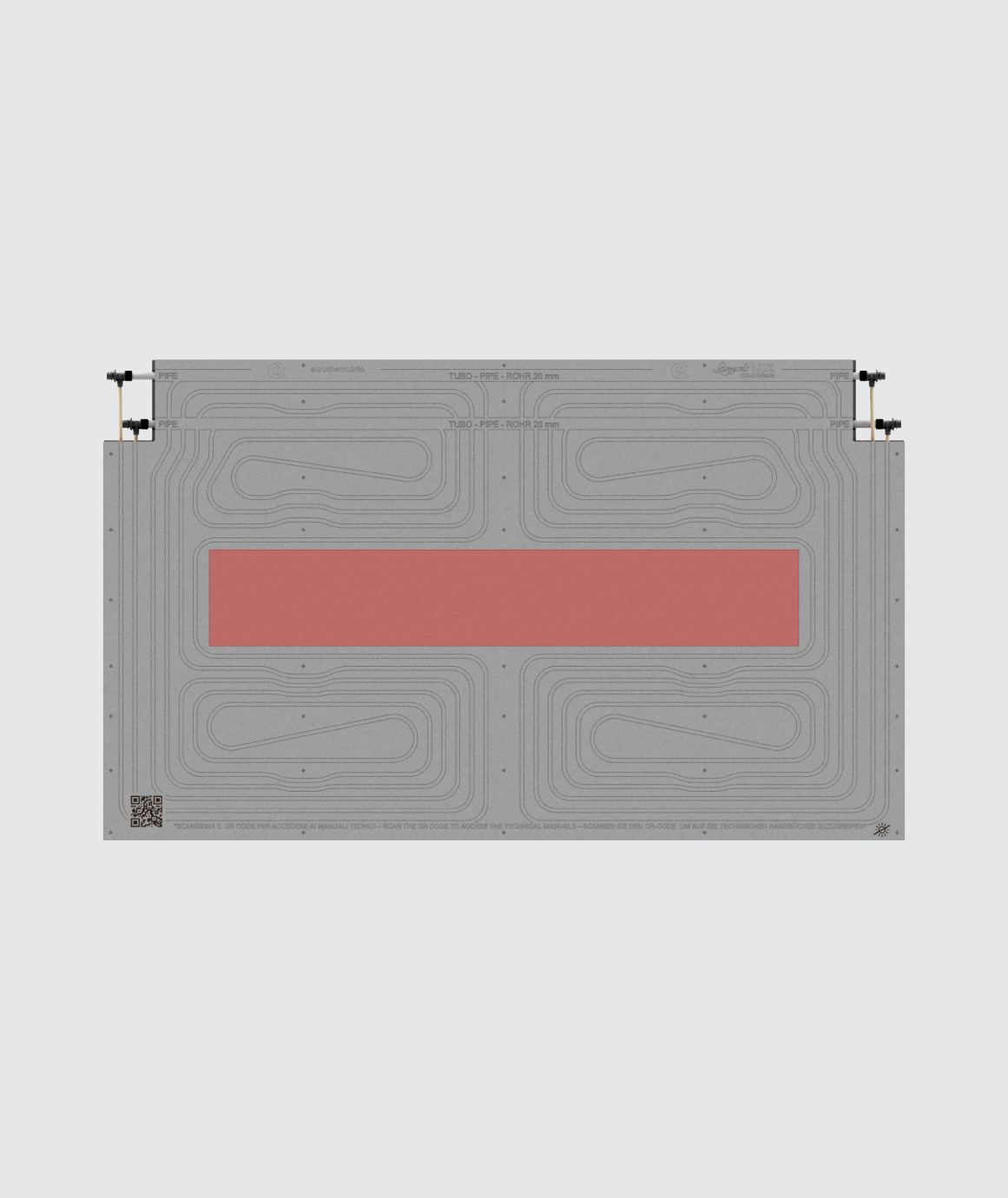

.Leonardo Lux offers maximum design flexibility as it permits simple, immediate installation of lighting systems, air treatment vents or other types of plant. The plasterboard panel is supplied coupled with a graphite-sintered EPS insulating sheet and is equipped with a 1450x180 mm space in the central area to house the plant engineering.
DESIGN PLUS
Dorsale idraulica preinstallata
La dorsale idraulica già integrata all’interno del pannello, progettata per agevolare il collegamento in serie dei pannelli, semplifica notevolmente le operazioni di installazione in cantiere.

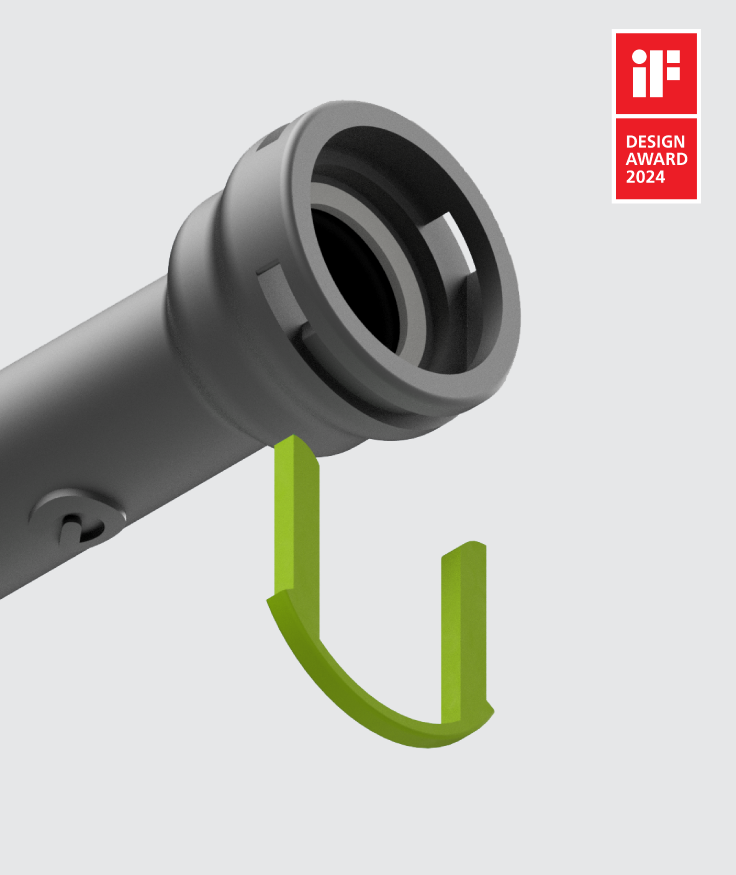

Nuovo raccordo Click&Safe
I raccordi premontati a stringere garantiscono massima tenuta nel tempo, grazie alla doppia guarnizione sui connettori tra i pannelli. Il sistema collega 10 m² in meno di 10 minuti, senza attrezzi, con clip di sicurezza per un montaggio preciso e affidabile.
Istruzioni digitali per la posa

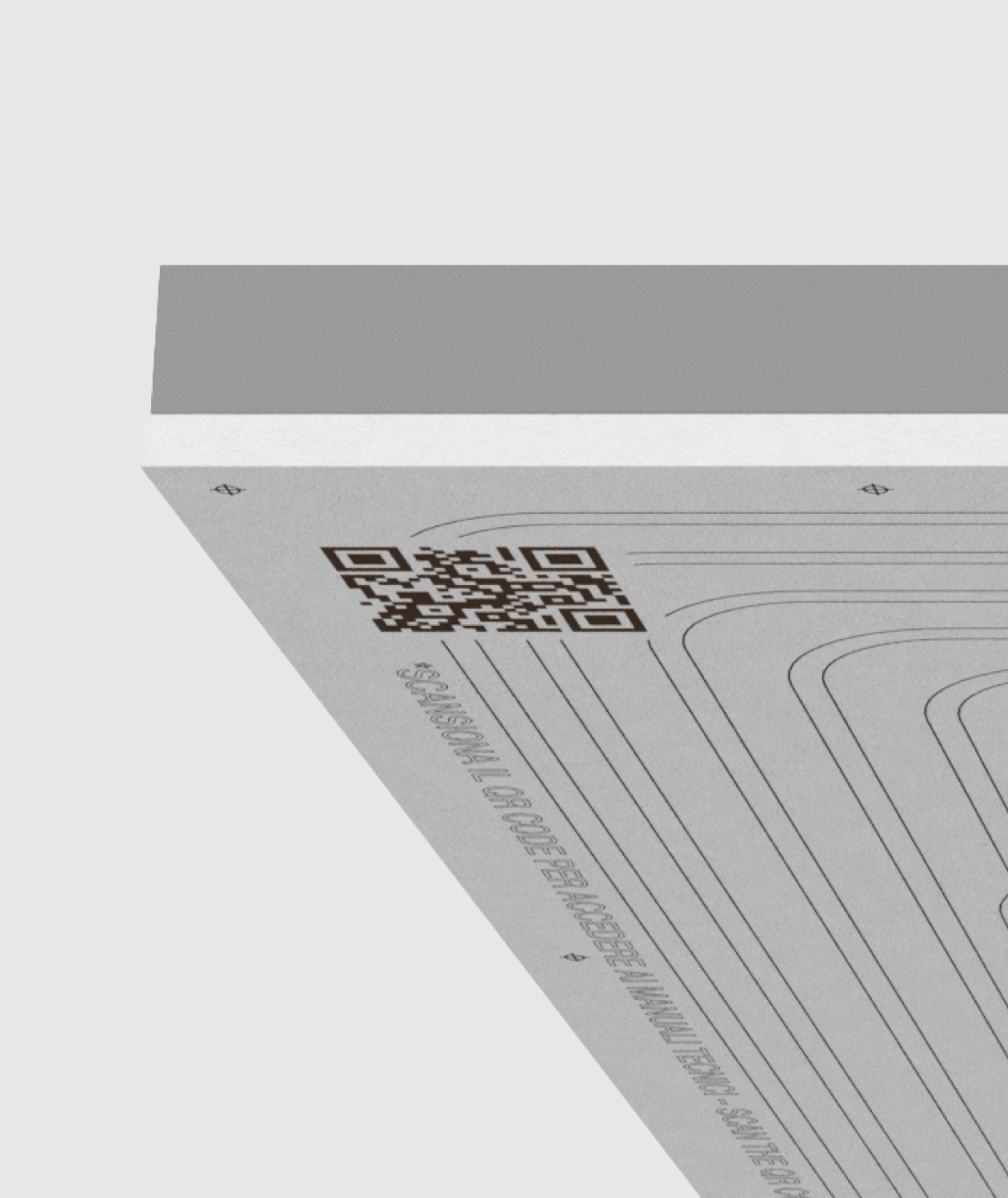

Ogni pannello Leonardo è dotato di un QR code che consente di accedere a manuali tecnici, video istruzioni e altre risorse direttamente dallo smartphone, rendendo l’installazione e la manutenzione più rapide e facili.
Vano tecnico per l’installazione dell’impiantistica
Il vano tecnico centrale è stato allargato per ottimizzare l’integrazione dei diffusori in gesso.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
