SmartComfort 365 multi-zone system, The evolution of technology, the certainty of comfort

  • 5" capacitive touchscreen display with multitouch technology
  • Wi-Fi and serial bus (RS 485) connection
  • Connection to cloud platform and dedicated apps
  • Compatible with home automation and voice control systems
  • Optimum start / stop
  • Pid regulation strategy
  • Advanced radiant system management
  • Advanced air treatment management
  • Temperature Control Class - VIII (EU Reg No 811/2013)
  • Class B (UNI EN 15232)

Pleasant comfort 365 days a year.

SmartComfort 365 is the technology developed to complement our systems to manage heating, cooling and air treatment systems with maximum efficiency.

At last, the goal of climatic comfort in every living and working environment can be achieved with a speed and efficiency hitherto unheard of. We are not talking about standard comfort, referring to normal heating and cooling systems, but rather comfort tailored to personal needs and the climatic characteristics of the area in which the property is located. SmartComfort 365 also optimises its operation according to outdoor conditions. The indoor climate is optimised for maximum comfort and the energy bill is reduced.



Advanced radiant system management

The system memorises usage habits and recognises the climatically unfavourable environment by correcting discomfort.




Integrated system with Start & Stop

The intelligent control continuously calculates the inertia of each individual room by anticipating start-up and shut-down.




Optimised PID regulation strategy

The technology algorithm allows the radiant system to be managed with maximum efficiency.




Advanced air treatment management

Up to 3 levels of air flow depending on different requirements.



Home automation and voice control system

Using voice devices*, monitoring and controlling the radiant system will be easy and straightforward.

* compatible with Amazon Echo and Google Home devices




Connection to the Cloud Platform

The platform allows the plant supervision and the display of graphs and statistics.




Innovative dual system management

Thanks to the Twin functionality, it is possible to manage up to two hydronic terminals in simultaneous or supplementary mode (e.g. radiant floor, ceiling, wall, fan coil or other water-fed terminal) with the same room sensor.




  • New display for sharper images.
  • Integrated GPU to ensure a smooth user experience.
  • Integrated WiFi to offer the best wireless connectivity.



The SmartComfort 365 climate controller is a management system for radiant systems and air handling machines via PID regulation logic. The SmartComfort 365 is a modular system consisting of the units described below.

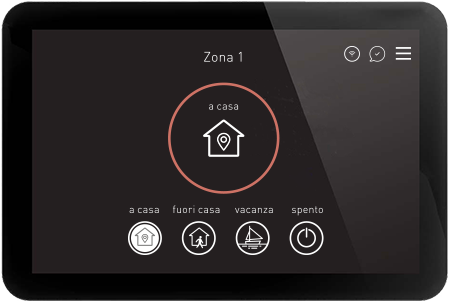

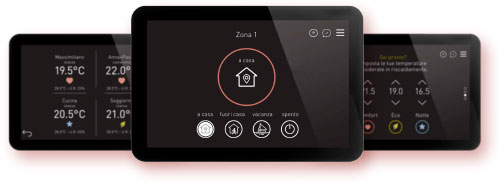

Display and control unit to manage climate control. It consists of a 5” capacitive touchscreen display with multitouch technology, a composite shell with a terminal board on the back. The control unit has an indicator light on its bezel to show the operating mode of the system: red for heating and blue for cooling. The control unit includes a motion sensor, SD card slot, WiFi, Ethernet, 2 RS485 serial ports. SmartControl 365 supports the connection of up to 6 SmartBase modules, to control 48 rooms, over bathrooms and 8 SmartAir modules or 8 Deuclima-VMC air machines.



SmartComfort 365 classification
EU Regulation No 811/2013:
Temperature control class -VIII

UNI EN 15232:
Class B





A round electrical box or 503 box adapter (supplied) is required for wall installation.








Voice control

Using voice control systems, monitoring and controlling the radiant system will be easy and straightforward. Home automation becomes SMART, ask your voice assistant (compatible with Amazon Echo and Google Home devices) to turn the system on or off or to raise or lower the temperature of a room.

“Hey Google, set the temperature in the kitchen to 20 °C”

“Alexa, set the temperature in the living room to 22 °C”



System management from App

The App allows direct access to the cloud platform and remote management of several radiant systems located in different building units. Should the connection fail, the App will automatically synchronise the data with the central system at a later time.



“Away” function

Thanks to active “geofencing”, when all connected devices are out of range of the SmartComfort 365, the “Away” function is activated, automatically resetting the selected temperature to save energy when no one is at home. The location of the user is not monitored.



Remote control

The “cloud” platform allows access to a dedicated web portal that enables the management of a user account to view graphs and data on your radiant system, download guides and manuals, ask for assistance and make use of various customised services. The web portal can also be used by specialised personnel (installer, service centre) to directly access the technical data of the system and provide assistance. The account owner can invite family members.
